Spot/Axial Light Control Module
Extension Modules

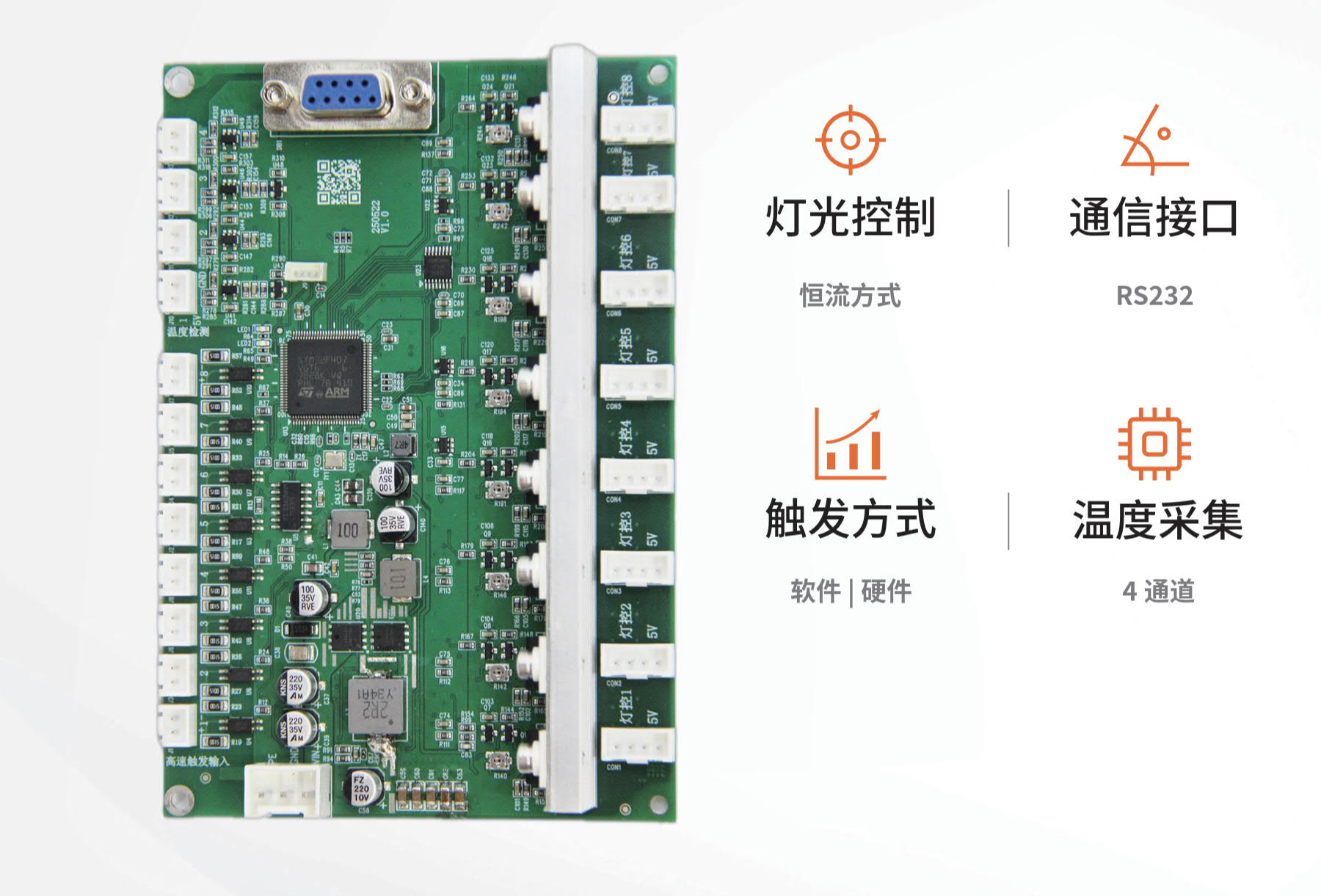

The ASCL-0508-R is a highly integrated industrial lighting control module featuring constant-current drive design. It supports 8 5V lighting outputs (4 strobe channels + 4 steady-on channels), with strobe response ≤1μs and a maximum single-channel power of 1W. Designed to meet high-speed visual inspection requirements, the module integrates 4 PT1000 temperature sensing channels, supports both software and hardware triggering, and includes RS232 communication. Powered by a single 24VDC supply with short-circuit protection, it simplifies system wiring, enhances equipment stability, and delivers precise light source control and environmental monitoring for automated production lines.
Key Features
- •Highly integrated: combines lighting control with 4-channel PT1000 temperature acquisition (0~120°C).
- •Multi-channel output: 8 5V constant-current light channels, plus 4 strobe channels
- •High-speed response: Strobe response time ≤ 1 μs; maximum power per strobe channel: 10W
- •Convenient Power: Single 2 4VDC supply reduces wiring complexity and equipment costs.
- •Flexible Triggering: Supports software and hardware triggers
- •Reliable and stable: Equipped with short-circuit protection to ensure long-term, stable operation.
Technical Specifications
| No. | Category | Parameters | Notes |
|---|---|---|---|
| 1 | Power Input | 24VDC | - |
| 2 | Adjust Level | 0~255 (Brightness) | - |
| 3 | Strobe Response Time | ≤1 μs | - |
| 4 | Security Measures | Short-circuit protection | - |
| 5 | Light Control | Constant Current | - |
| 6 | Output Channel | 8 channels (1–4 strobe, 5–8 steady) | - |
| 7 | Light Voltage | 5V | - |
| 8 | Strobe Channel Power | 10W | - |
| 9 | Constant Channel Power | 1.25W | - |
| 10 | Strobe Channels | 4 of 8 (items 1–4) | - |
| 11 | Communication Method | RS232 | - |
| 12 | Operating Temperature | -10~50℃ | - |
| 13 | Storage temperature | -20~+70℃ | - |
| 14 | Configuration Method | Serial Terminal | - |

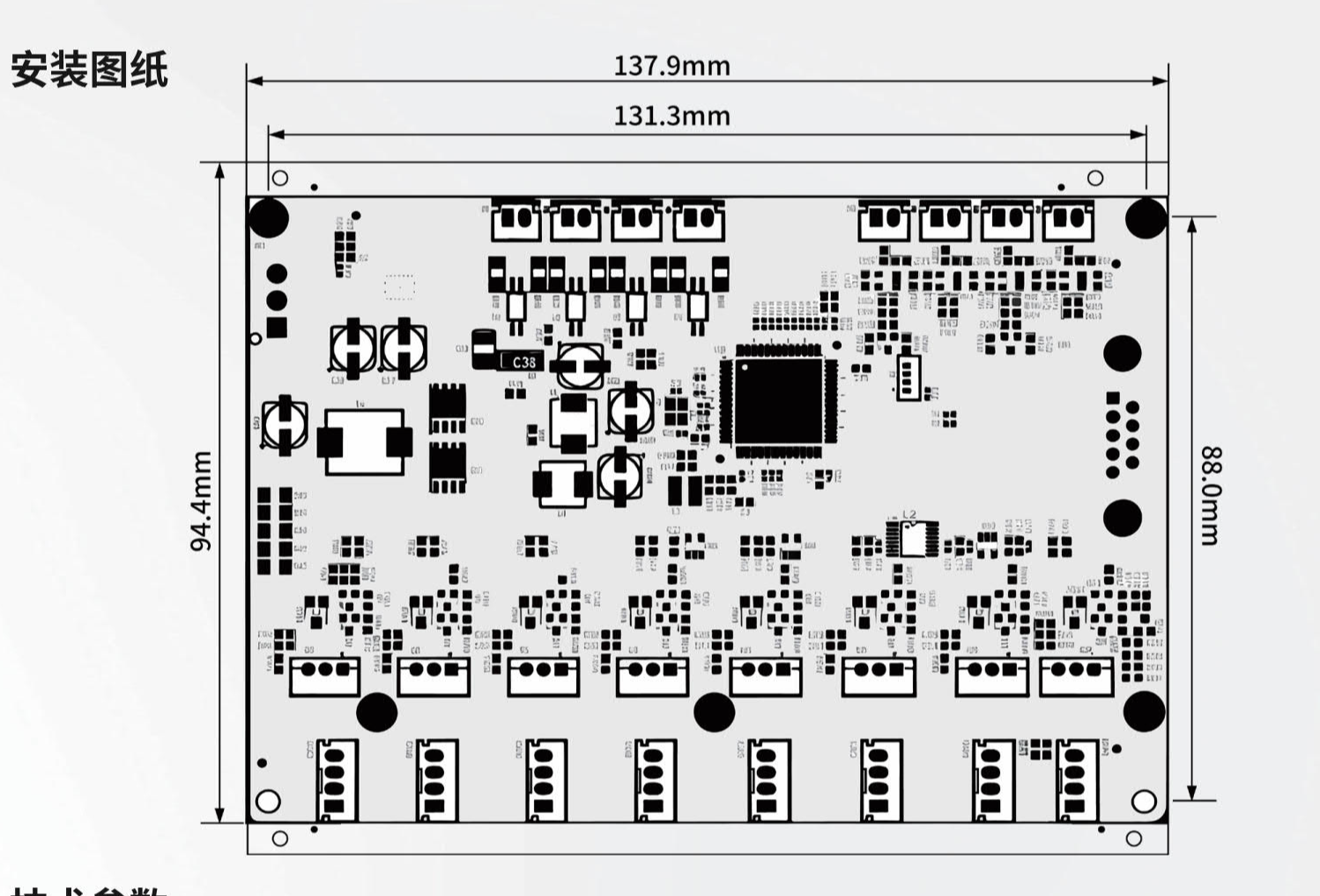

| 15 | Size | 156mm×94.4mm, plugin height < 21mm | - |
Installation and User Guide
Install near a light source to minimize line loss and ensure proper heat dissipation. Connect the LED lights according to polarity, observing maximum current limits to prevent overload. Configure the communication address and baud rate, then set channel parameters via host software.
