Extension Modules
Provides expansion modules for light control, ring light control, IO control, and multi-function control. Ideal for machine vision, automation equipment signal acquisition, and control output applications.
Light Control Module
Precision Point Light Source Control System. Supports independent control of 4/8 channels with output current of 0-3A per channel. Features PWM and analog dimming modes with 0.1% dimming accuracy.
Ambient Light Control Module
Ring light provides uniform illumination with a maximum output power of 100W, dimming precision of 0.1%, and supports stroboscopic control at frequencies up to 50kHz.
IO Control Module
Digital/Analog I/O Expansion Module supporting 16/32 digital input/output channels and 4/8 analog input channels. Uses Modbus RTU communication protocol.

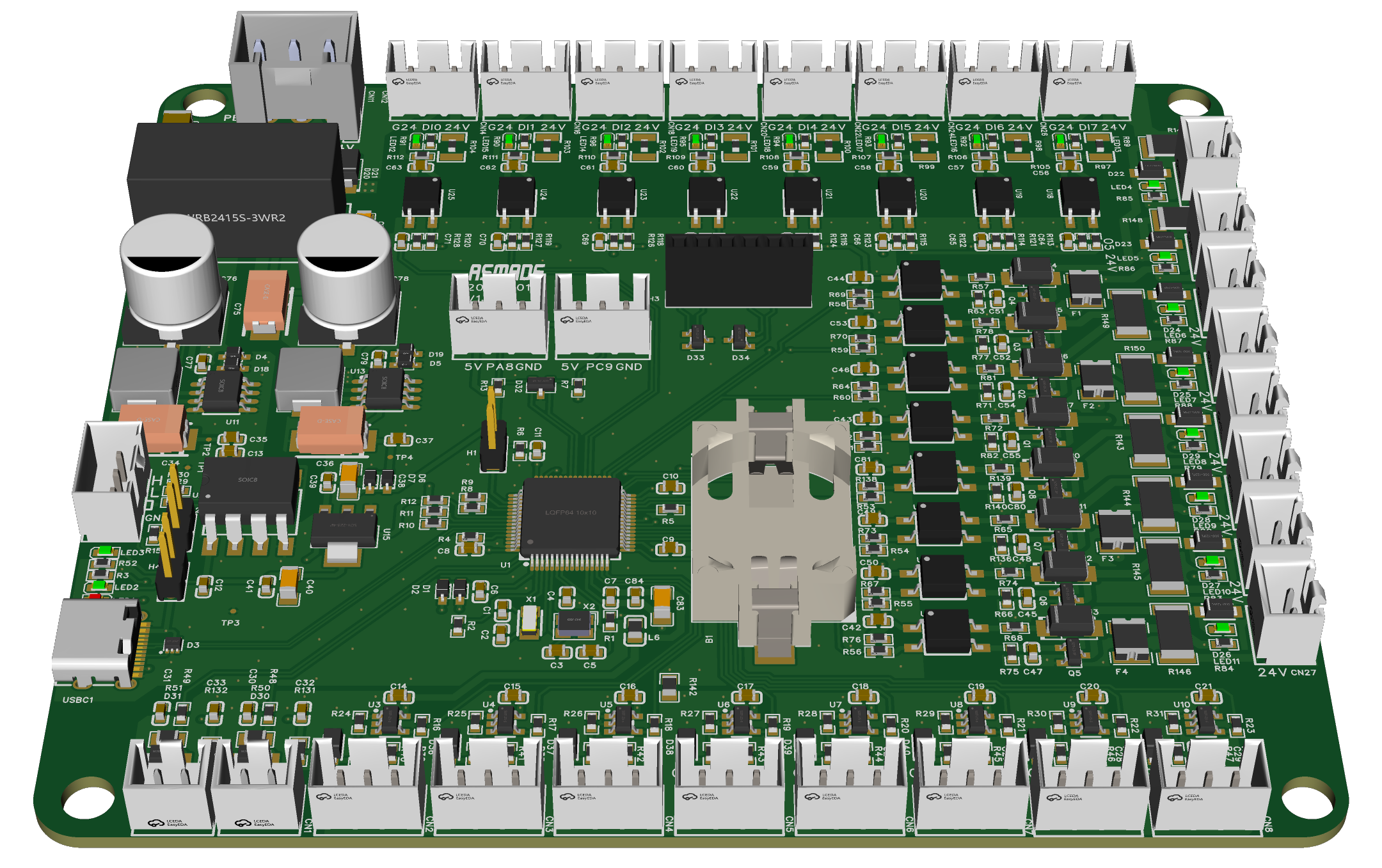

Multi-function Control Module
Integrated multi-function control module combining I/O, encoders, analog signals, and more. Features 4 ABZ encoder interfaces and 4 ±10V analog outputs.
