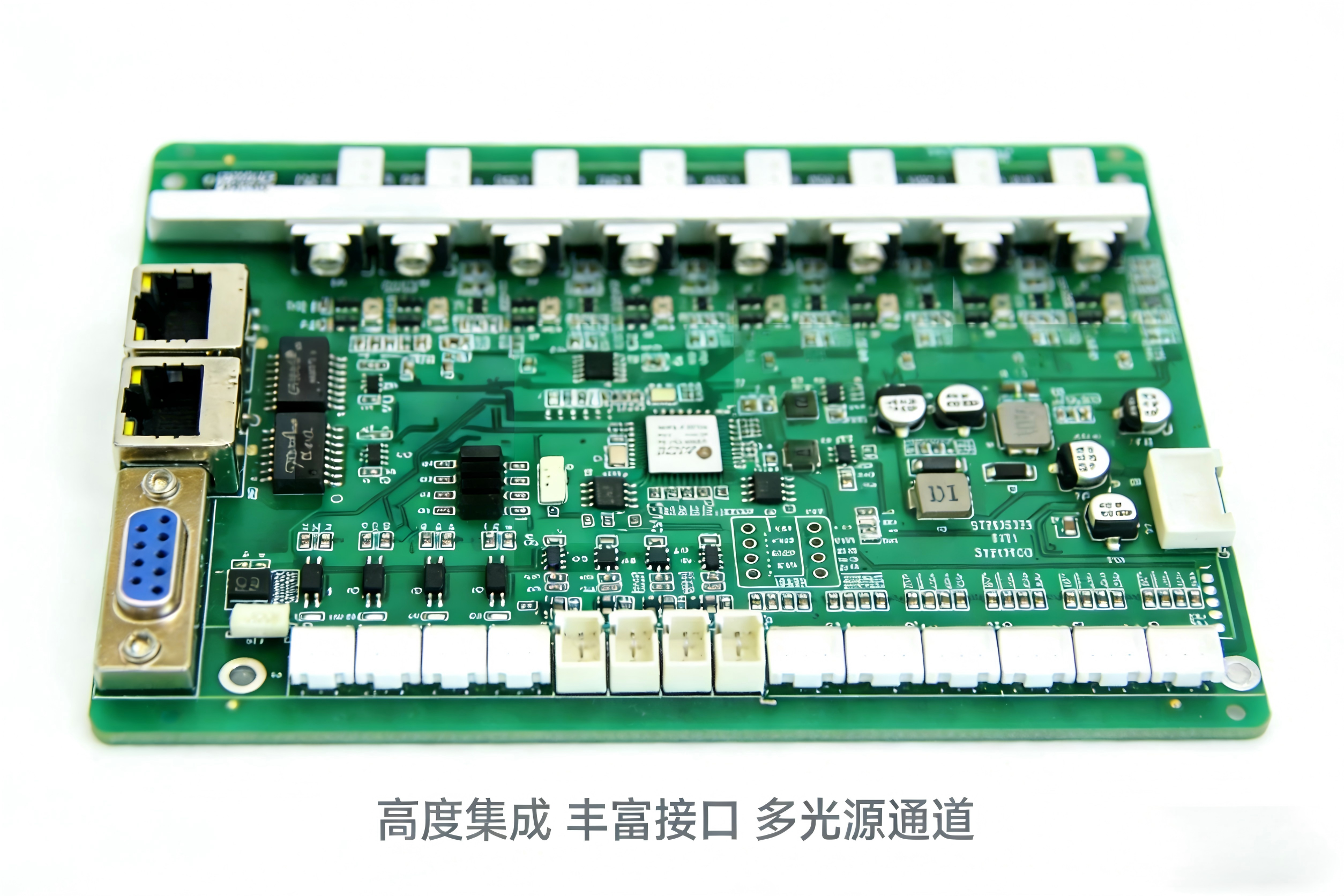

The ASCL-2408-E is an industrial lighting control module launched by Zhuoxing, designed specifically for automation scenarios such as machine vision and precision inspection. The product integrates 8 independent light source control channels, supporting high-speed, high-precision dimming and analog signal acquisition. It is compatible with EtherCAT industrial bus and RS232 serial ports, and adapts to various visual light sources including ring lights and area lights. This provides a stable and reliable lighting control solution for production line inspection and precision measurement.
Key Features
- •8 independent light sources: supports multi-source sync/async dimming, 4 channels with strobe capability, max 6W per channel
- •High-speed, high-precision performance: Strobe response ≤2 μs, 12/23-bit dimming output, 4 channels of high-precision analog acquisition
- •Enhanced communication interfaces: EtherCAT industrial bus + RS232 serial port, compatible with legacy and modern automation platforms.
- •Highly Integrated Design: Combines lighting control, data acquisition, and detection in a compact form factor to save installation space.
- •Flexible Trigger Modes: Supports both software and hardware triggers for diverse, complex detection scenarios.
Technical Specifications
| No. | Category | Parameters | Notes |
|---|---|---|---|
| 1 | Power Input | 24V (±3) DC | - |
| 2 | Adjust Level | 0~4095 (12 digits) / 0~8388607 (23 digits) / 0~255 (brightness) | - |
| 3 | Strobe Response Time | ≤2 μs | - |
| 4 | Security Measures | Overcurrent protection | - |
| 5 | Light Control | Current-type | - |
| 6 | Light Input | 8 channels, max 6W per channel | - |
| 7 | Light Voltage | 0-5V, 6 channels | - |
| 8 | High-precision input | Current type 4mA-20mA, 4 channels | - |
| 9 | Communication Method | RS232+EtherCAT | - |
| 10 | Operating Temperature | -10~50℃ | - |
| 11 | Configuration Method | TwinCAT or Serial Port Assistant | - |

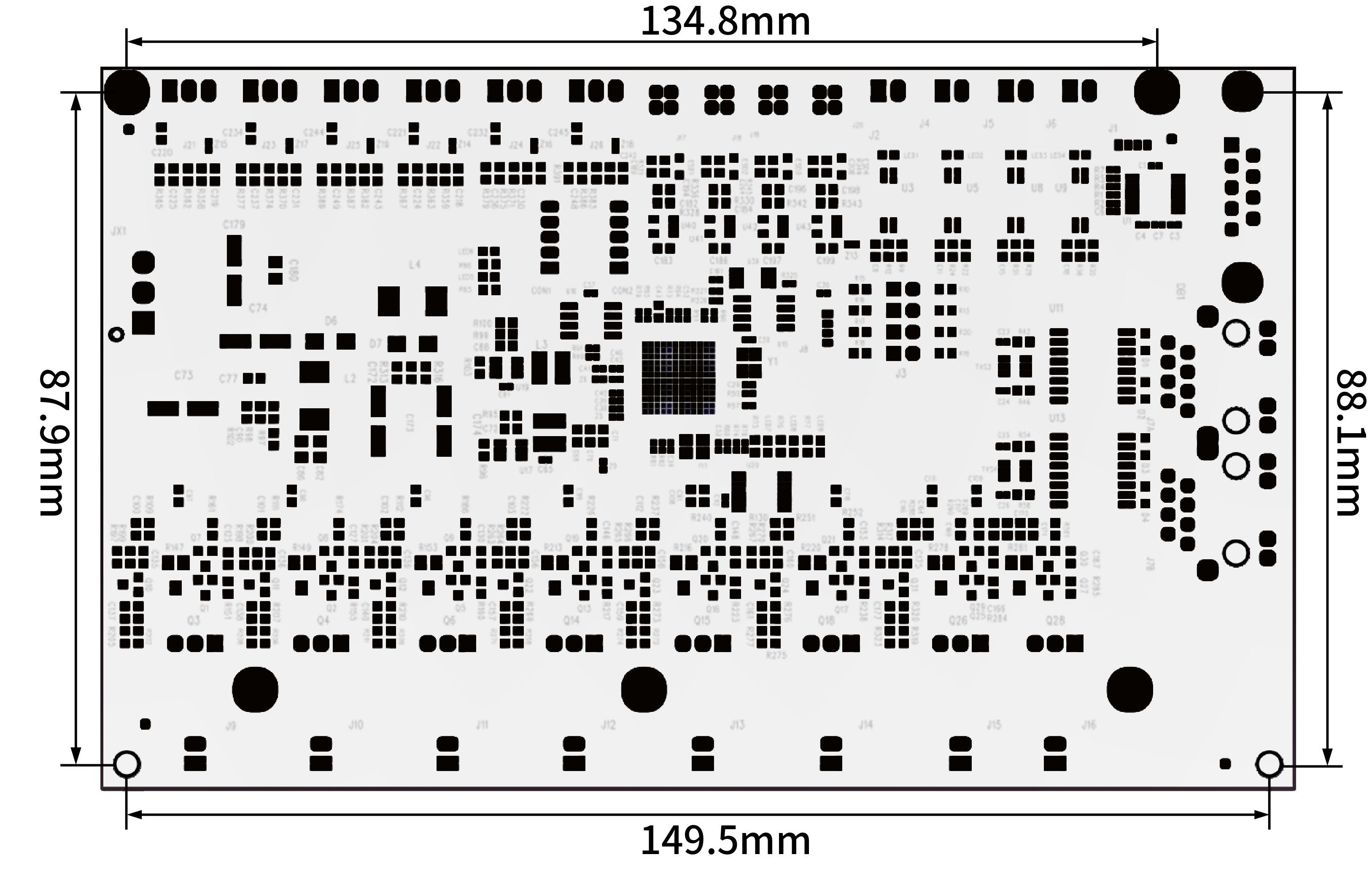

| 12 | Dimensions | 156mm×94.4mm, plug height < 50mm | - |
| 13 | Trigger Method | Dual software/hardware trigger | - |
| 14 | Analog Signal Acquisition | High-speed, high-precision acquisition | - |
Installation and User Guide
1. Installation: Mount the module in a well-ventilated control cabinet, away from strong electromagnetic interference, ensuring it is securely fastened. 2. Wiring: Connect to a 24V DC power supply and ensure reliable grounding; connect light sources, analog signals, trigger lines, and communication lines (EtherCAT/RS32) according to labels. Never connect or disconnect while powered. 3. Power-on & Debugging: After verifying wiring, power on the system and configure light intensity, trigger mode, and communication parameters using TwinCAT or a serial terminal. 4. Operation & Maintenance: Once running normally, regularly inspect the power supply, wiring, and environment. Maintain operating temperatures between -10~50°C. Do not plug/unplug or modify the module while powered.
