Multi-function Control Module
Extension Modules

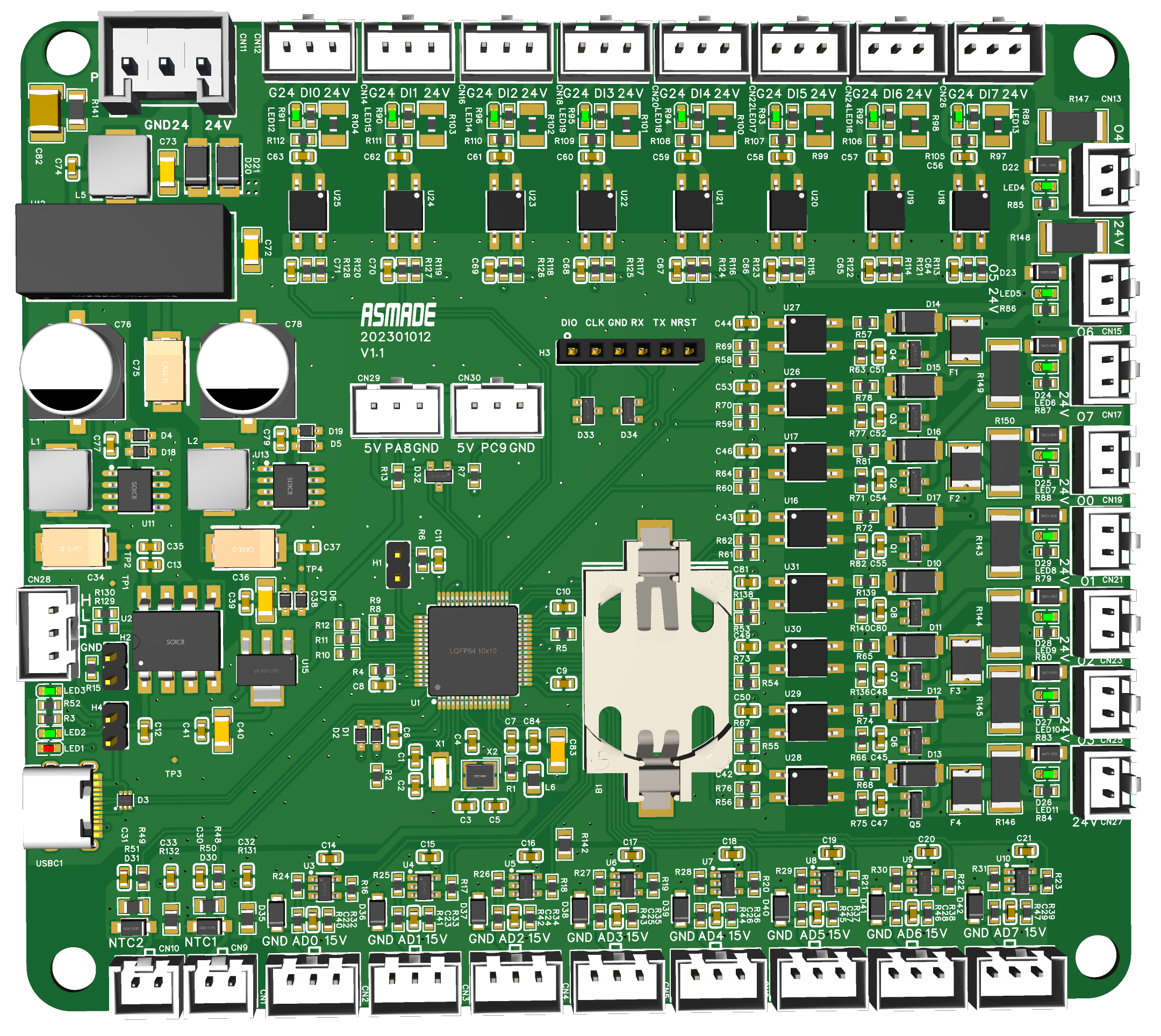

ASCM-0808-U is an all-in-one industrial multifunction control module from Zhuoxing. It operates on a single DC 24V power supply and integrates digital I/O, high-speed analog acquisition, temperature sensing, and CAN communication. The module connects to the host PC via USB 2.0 Type-C for high-speed data transfer. With built-in protection and status indicators, it can be directly connected to sensors and relays. Ideal for automated monitoring and control, data acquisition, and device coordination, ASCM-0808-U delivers a one-stop solution for industrial testing and control.
Key Features
- •Highly Integrated: 8DI/8DO + 8 Analog Inputs + 4 Temperature Channels + CAN Bus – One-Stop Solution for Monitoring and Control
- •High-Speed USB: USB2.0 480Mbps, Type-C plug-and-play, direct host control for efficient debugging
- •High-precision acquisition: 8 channels of 0~5V analog signals with 12-bit resolution (0~4095), ensuring accurate and stable data collection.
- •Secure I/O: DI/DO with LED indicators, DO single channel 200mA, overcurrent protection, direct relay drive capability
- •Precise Temperature Measurement: 4 temperature channels (2 NTC + 2 digital), -50~125°C, accuracy ±1°C
- •CAN Expansion: Compatible with CAN 2.0, supports cascaded expansion, and integrates with multi-device automation systems
Technical Specifications
| No. | Category | Parameters | Notes |
|---|---|---|---|
| 1 | Rated Voltage | 24V DC (with reverse polarity protection); Voltage range 22~26V; Rated current 0.1A; Peak current 5.0A | - |
| 2 | Control Mode | USB 2.0 | - |
| 3 | Communication Speed | 480 Mbps | - |
| 4 | Physical Interface | Type-C | - |
| 5 | IO System - Input Features | Common anode; active low; LED indicator on each input port; 5mA operating current per input port, average supply current 20mA | - |
| 6 | IO System - Output Features | Common anode; active low; each output port supports a maximum current of 0A with over-8W output protection; automatic, resettable overcurrent protection; LED turns off during protection and resumes normal operation after reset; each output port features an LED indicator; each output port includes a 3A flyback diode for direct relay connection. | - |
| 7 | IO System - Default at Boot | - | |
| 8 | Analog Acquisition - Input Channels | 8 | - |
| 9 | Analog Input - Input Range | 0~5V DC | - |
| 10 | Analog Input - Resolution | 0~4095, 1 2-bit | - |
| 11 | Temperature Detection - Input Channel | 4 | - |
| 12 | Temperature Detection - Analog Channel | 2 | - |
| 13 | Temperature Detection - Digital Channel | 2 | - |
| 14 | Temperature Detection - Range | -50~125℃ | - |
| 15 | Temperature Detection – Error | ±1℃ | - |
| 16 | CAN bus | Compatible with CAN2.0 | - |
| 17 | Size | 123mm × 109mm, maximum device height < 25mm | - |
Installation and User Guide
1. Install:Mount the module securely in the control cabinet, away from strong electromagnetic interference, ensuring adequate ventilation.
2. Wiring:Connect to 24V power and ground; connect DI/DO, analog signals, temperature sensors, and CAN bus; insert Type-C USB.Do not connect wires while power is on。
3. Power On:Power on after verifying wiring is correct. Check that the power and I/O indicator lights are functioning normally.
4. Debug:Connect to a PC and configure IO, analog, temperature, and CAN parameters via the host software.
5. Maintenance:Regularly inspect wiring. Maintain environment at -10~50°C, dry and dust-free.
