High-Voltage Servo Drive
Product Details

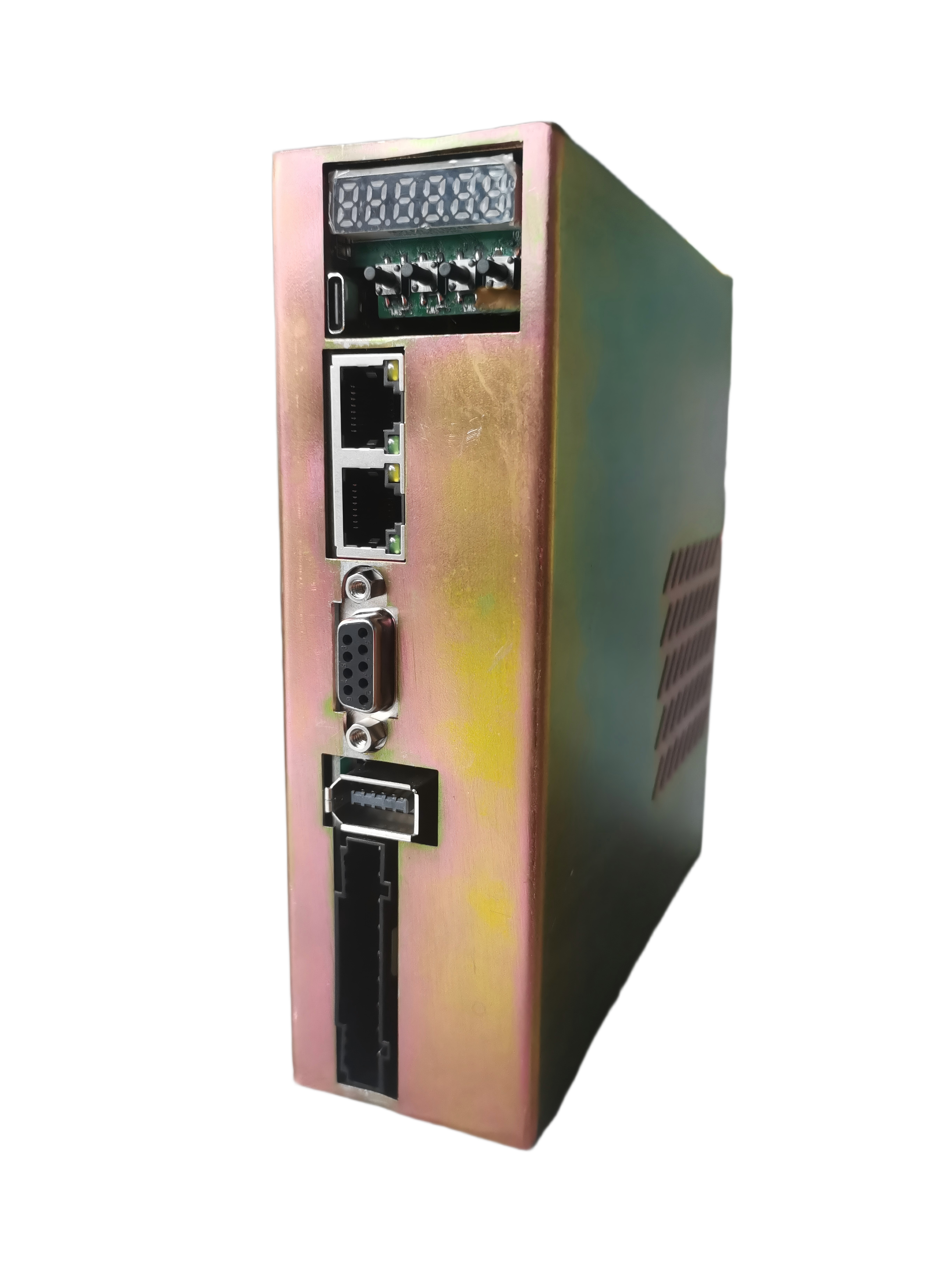

High-Voltage Servo Drive
Drive
The high-voltage servo drive supports a wide input voltage range of 220V–480V and delivers power from 100W to 7.5kW. It features built-in position, speed, and torque control modes. Leveraging advanced vector control algorithms, it is compatible with various encoder types and ideal for industrial automation equipment such as CNC machines, injection molding machines, packaging machinery, and textile machinery. Comprehensive protection functions include overcurrent, overvoltage, overheating, and overload safeguards.
Key Features
- •Supports 220V–480V wide voltage input
- •Power range 100W-7.5kW
- •Position/Speed/Torque Control Modes
- •Supports incremental and absolute encoders
- •Built-in EMC filter
- •Comprehensive protection features
Technical Specifications
| No. | Category | Parameters | Notes |
|---|---|---|---|
| 1 | Input Voltage | AC 220V–480V ±15% | - |
| 2 | Power range | 100W-7.5kW | - |
| 3 | Control Mode | Position / Speed / Torque | - |
| 4 | Encoder Support | Incremental/Absolute/Resolver | - |
| 5 | Communication Interface | RS485/CANopen | - |
| 6 | Protection Rating | IP0 | - |

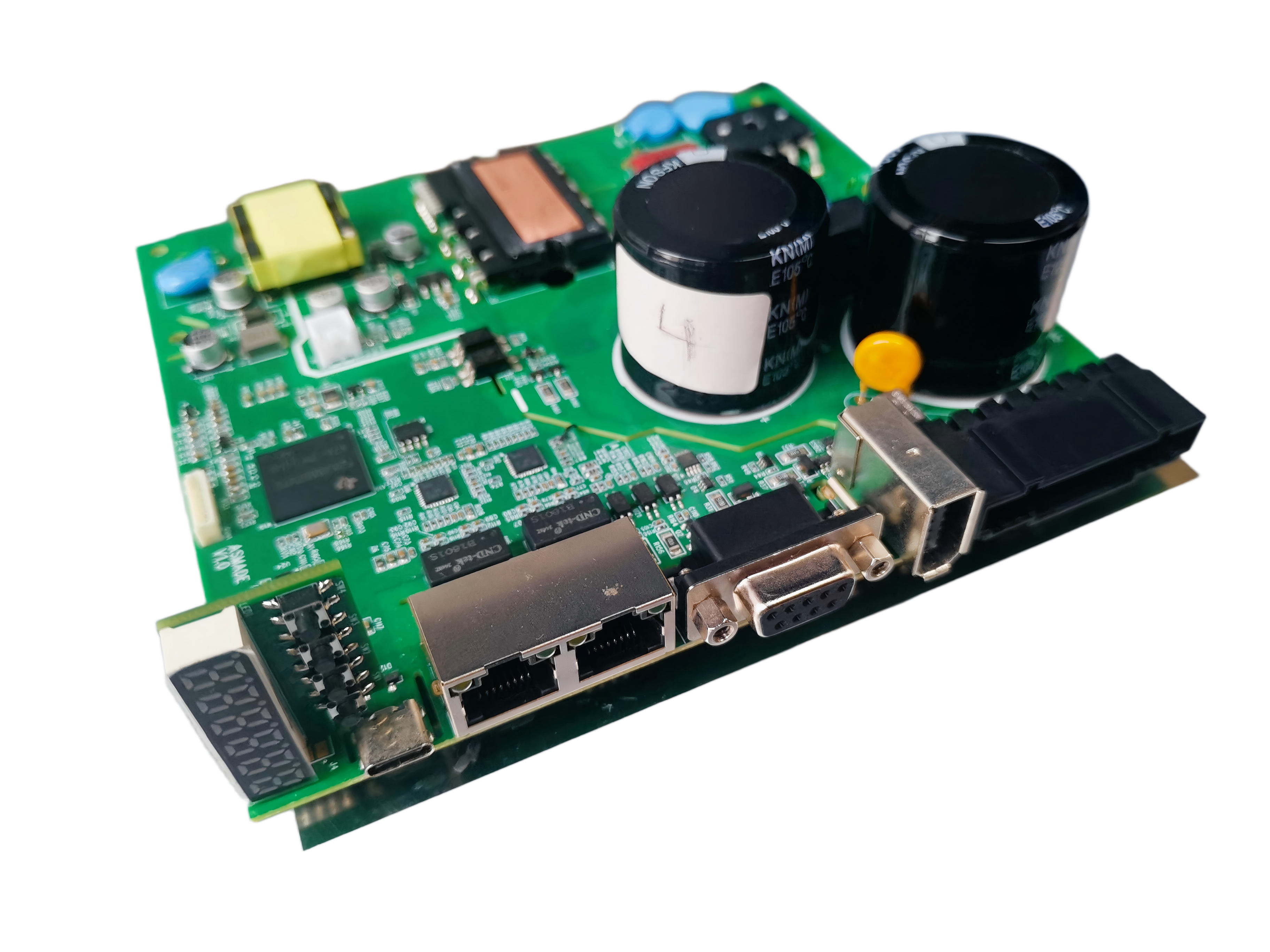

Installation and User Guide
Install in a well-ventilated electrical cabinet. Ambient temperature: 0–40°C; humidity: <90% (no condensation). Connect main power, motor cables, encoder cables, and control signal lines per the wiring diagram. Ensure proper grounding. Configure motor parameters, control mode, gain settings, etc., via the panel or software, then perform self-learning optimization.
