Zhuoxing Semiconductor | Centralized IO Control Module: High-Integration EtherCAT Bus IO Solution
Driven by the urgent need for flexibility and space efficiency in industrial automation, Zhuoxing Semiconductor introduces a centralized I/O control module—an innovative solution based on EtherCAT bus technology. This module leverages real-time Ethernet architecture to deliver high-speed communication for 32 digital input/output channels. Each channel features an LED status indicator and supports direct relay driving, significantly boosting control efficiency. As industrial automation accelerates toward greater flexibility and intelligence, equipment demands higher integration, expandability, and spatial adaptability from I/O control systems. While traditional pulse control schemes offer high real-time performance, their reliance on PCI/PCIe card-based architectures requires adding new cards during expansion. This results in inherent limitations: low integration, high hardware costs, poor scalability, and large footprint—making them ill-suited for the trends of equipment miniaturization and flexible production line upgrades.
In industrial automation systems, I/O (Input/Output) control modules play a foundational and critical role. As the core interface for device-environment interaction, I/O modules acquire input signals from sensors and switches while driving output devices such as actuators and indicator lights. They serve as the essential hardware platform for precise control and stable operation of automated equipment. Their performance and architecture directly impact system reliability, efficiency, and upgrade potential. The emergence of EtherCAT (Ethernet Control Automation Technology) has become key to overcoming traditional I/O control bottlenecks—its innovative real-time Ethernet architecture redefines how I/O modules connect and scale in industrial automation.
A complete EtherCAT I/O solution
Solve the three core pain points in industrial environments
Zhuoxing Bus I/O Control Module: Solving Three Core Pain Points in Industrial Environments
1. Overcome Cost Challenges: Integrated PHY module reduces external components, directly lowering BOM costs to enhance device price competitiveness.
2. Overcome Wiring Challenges: Simplify high-speed signal routing, minimize interference sources, and enhance overall system reliability for a more stable production line and easier maintenance.
3. Overcome Space Constraints: Integrates PHY and controller on a single chip to significantly reduce PCB area, enabling device miniaturization and fitting compact production line layouts.

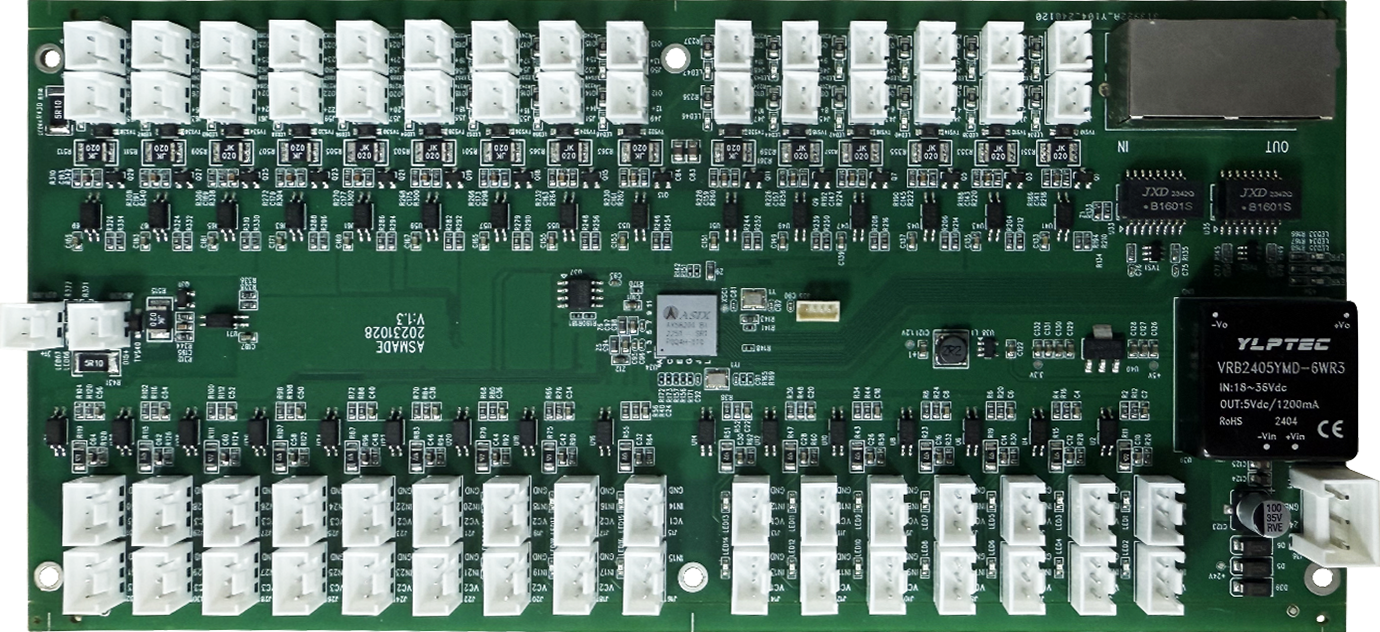

ASCM-3232-E EtherCAT Bus IO Control Module Product Image
Core Advantages of ASCM-3232-E EtherCAT Bus IO Control Module
* High-Speed Communication: Supports EtherCAT for real-time, stable data transmission
* High-performance I/O configuration: 32 digital input/output channels, each with an LED indicator; outputs can directly drive relays.
*Safe & Reliable: Full optocoupler isolation, 24VDC anti-reverse power supply, output overcurrent protection
* Easy to use: Multi-PIN connector with plug-and-play support, boosting assembly efficiency by over 6 times.
* Compact Design: Features a bare PCBA design with dimensions of only 221*96*25mm, significantly saving internal device installation space.
Wiring Methods Compared: Traditional vs. Innovative
Traditional loose-leaf press-end splicing incurs high costs.

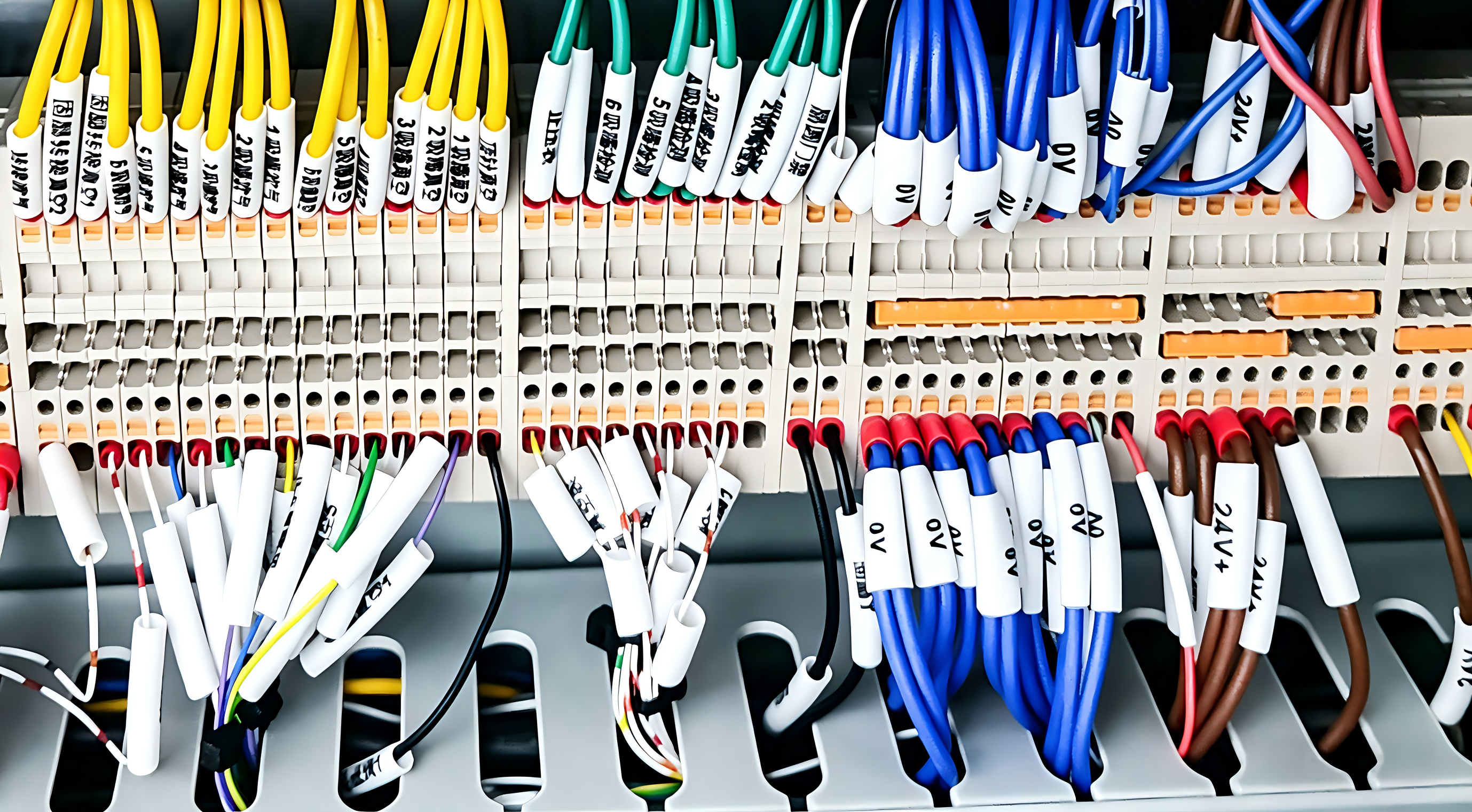

Traditional Mode: Centralized Terminal Block Assembly

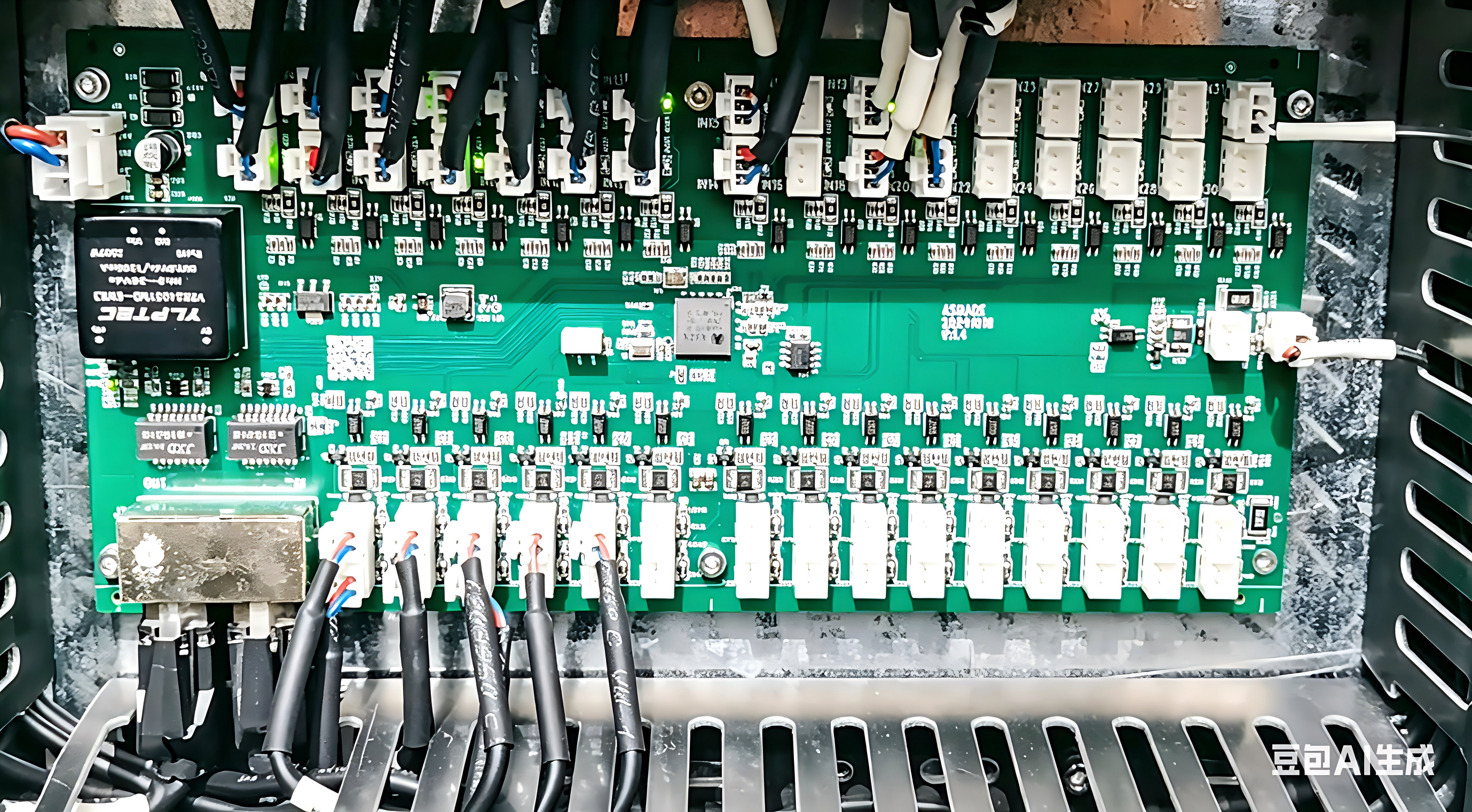

ASCM-3232-E uses a snap-in socket with supplier-prepared crimping, enabling direct plug-and-play assembly on the production line.
Zhuoxing Solution: Plug-and-Play Assembly
Typical Application: Photoelectric Switch Wiring
For example, with a three-wire photoelectric switch (GND, VDD, SIGNAL):
Traditional approach: Requires separate connections to power and I/O terminals, leading to complex wiring and higher error rates.
Zhuoxing Solution: Pre-crimped crimp socket with direct-insert sensor module for one-step efficiency boost of 6x

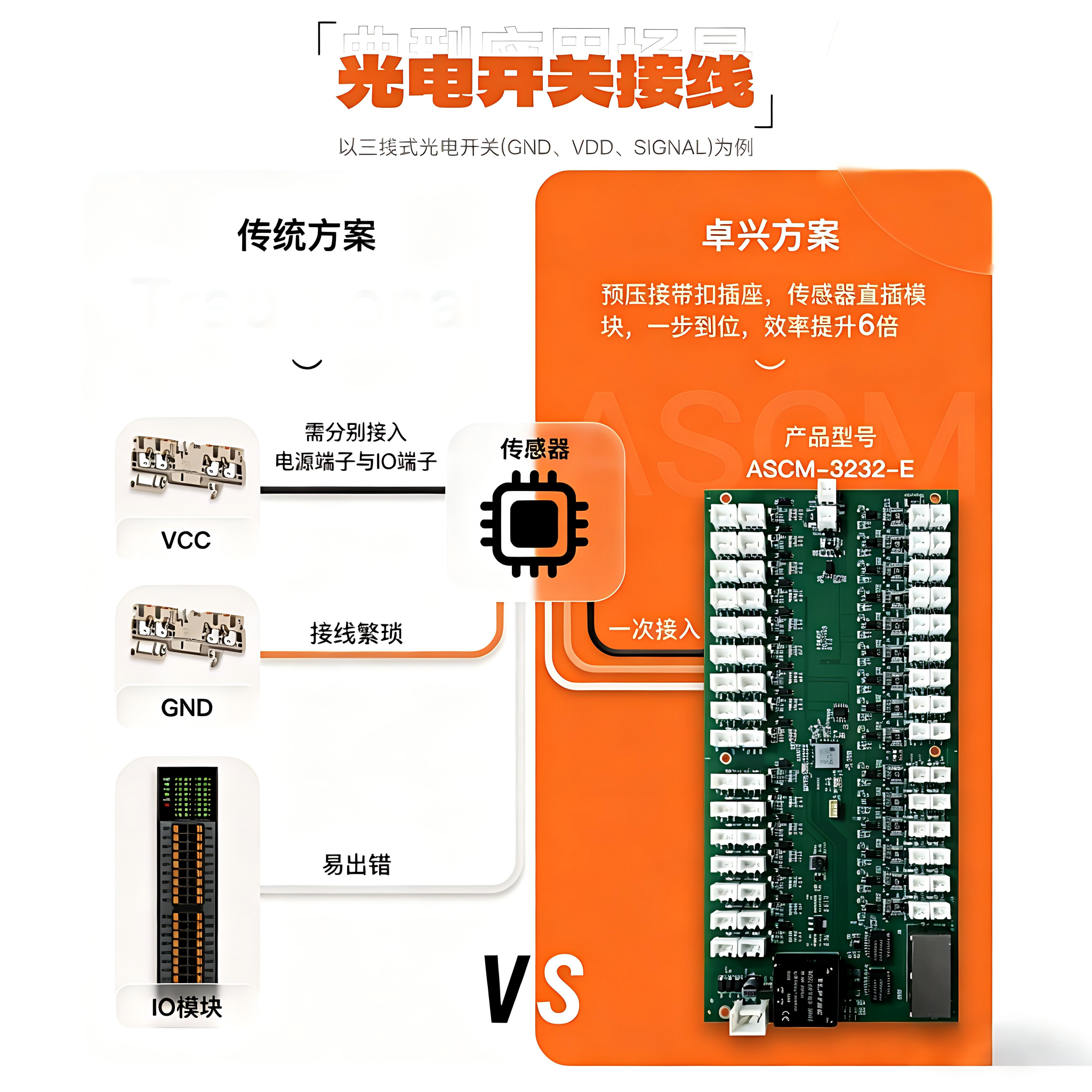

Wiring Configuration Comparison Diagram
