Integrated Point Light Source Control and Temperature Detection Solution
Customer pain points
Light source control and temperature detection use separate modules, resulting in a large device footprint.
Redundant communication ports with low resource utilization
Low system integration and a loosely coupled overall architecture.
Fails to meet the stringent requirements for imaging precision and long-term reliability demanded by high-precision vision systems.
Customer Pain Points in Machine Vision Spot Light Control
Pain points of customers using machine vision spot light control
Solutions
The Zhuoxing Integrated Light Source Control Module combines light control and temperature compensation into one unit with built-in temperature sensing. The ASCL-0508-R point light source control module is designed specifically for 5V point lights, offering a highly integrated all-in-one solution. It supports 8 independent light channels: 4 high-power strobe channels at 6W per channel, and a constant-on channel with approximately 1.25 watts. It features 4 PT1000 temperature sensors with a measurement range of 0°C to 120°C. Using RS232 communication, it enables synchronized dimming and temperature reading.

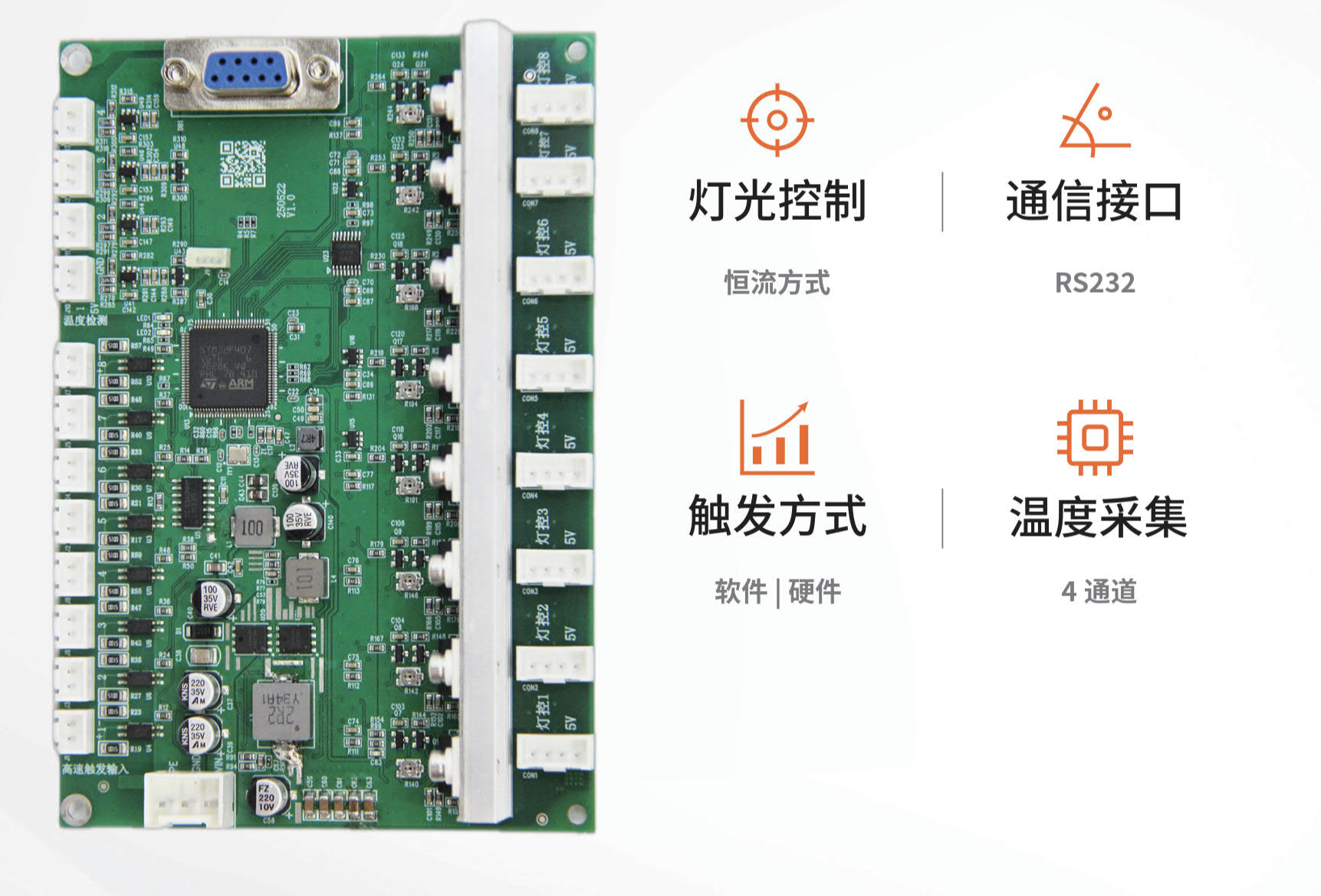

Solution Product Image
Solution Benefits
Constant-current closed-loop control with digital adjustment; range: 0 to 255.
8 independent light sources, 4 high-power strobe + 4 continuous lights
Built-in 4 PT1000 temperature sensors with a range of 0°C to 120°C
RS232 communication: synchronize dimming control and temperature reading
Highly integrated design simplifies system architecture and enhances visual inspection reliability.

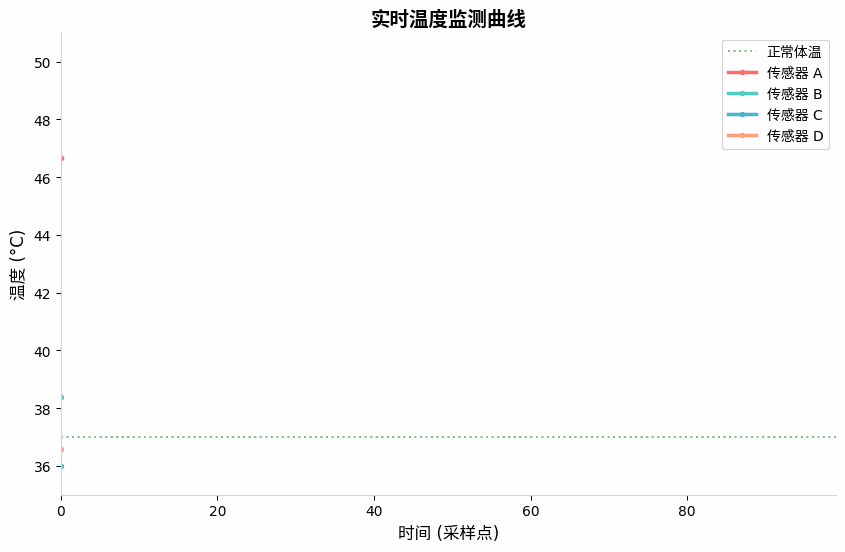

Real-time Temperature Control Curve
Use Cases
Semiconductor Packaging
Precision Inspection
Automated Alignment
High-Precision Vision System
Customer Cases
Z Company LED Flip Chip Mounter
C Company Semiconductor Precision Inspection Equipment
